LED ceiling panel is one of the most efficient lighting solutions for primary illumination in offices, schools, and contemporary homes. It provides uniform light distribution and precisely defined illumination levels in lux. A properly selected LED ceiling panel replaces traditional fluorescent fixtures, lowers energy consumption, and ensures long-lasting stable light output without significant performance drop over time.

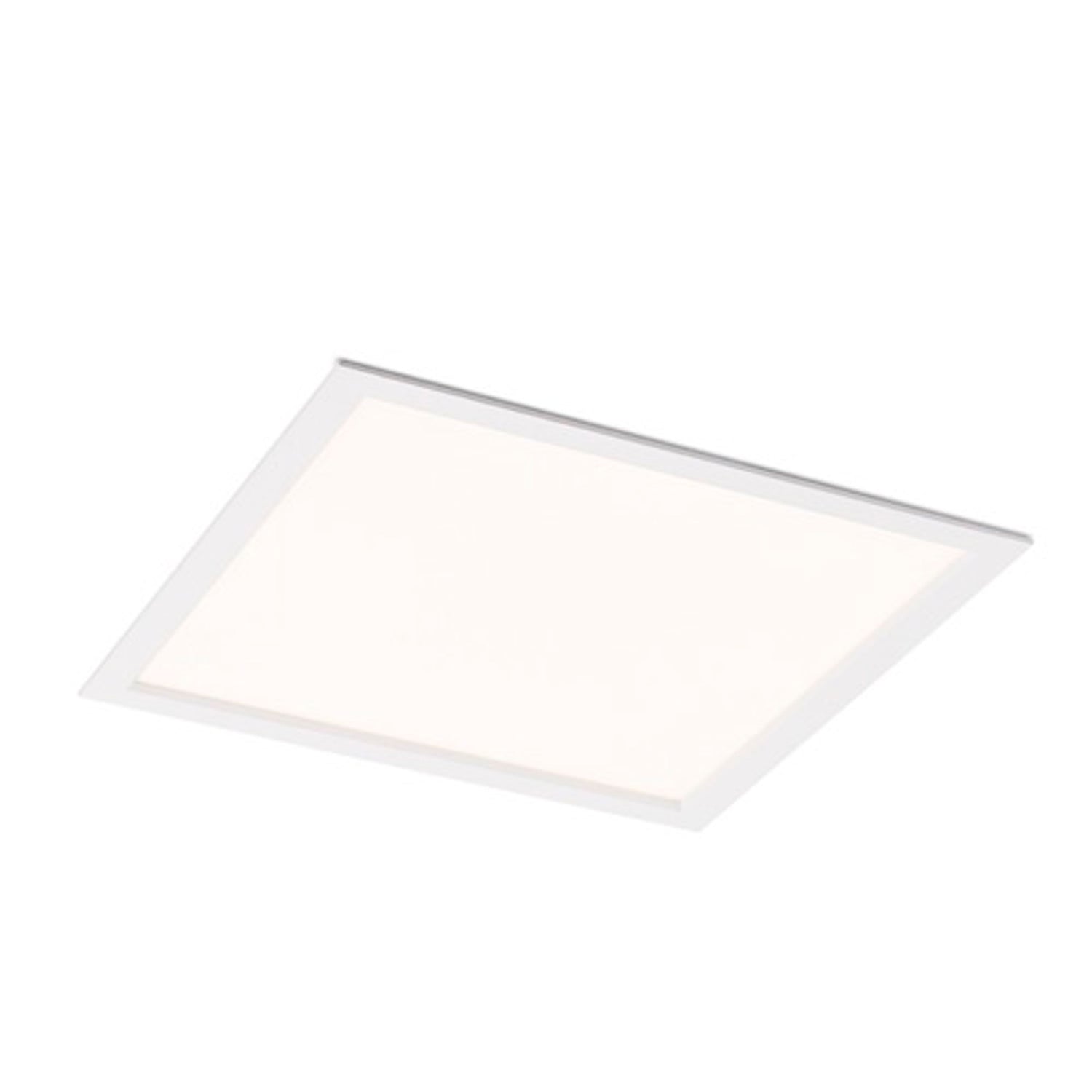

Structurally, a LED panel for ceiling consists of an aluminum frame, a light guide plate, and a diffuser that spreads light evenly across the surface. Thanks to its low profile, the LED ceiling panel can be recessed into suspended ceilings, drywall constructions, or surface mounted. A high-quality LED ceiling panel minimizes glare, eliminates dark corners, and creates a visually comfortable environment ideal for extended occupancy.
LED ceiling panel as the main light source indoors
LED ceiling panels serve as primary light fixtures. In offices, they provide an even 300–500 lux on work surfaces, while classrooms and healthcare spaces may require higher levels according to standards. In residential settings—such as kitchens or home offices—they act as central lighting without needing multiple spotlights.
A common mistake is installing a single LED panel for ceiling in a large room expecting uniform lighting. Insufficient coverage causes contrast between the room’s center and edges. Proper planning involves multiple panels arranged logically relative to furniture layout and work areas.
Technical details: lumens, lux, UGR, and performance stability
The key metric is luminous flux (lm). For example, a 120x30 LED panel typically emits 3600–4500 lm with a power consumption of around 30–40 W. For a 20 m² space requiring 400 lux, about 8000 lumens total output is needed, corresponding to two or three panels depending on efficiency.
Color temperature of 4000 K enhances focus and suits office environments, while 3000 K creates a cozier atmosphere in living spaces. The color rendering index (CRI ≥ 80) is a standard, with higher values improving color accuracy of materials and surfaces.
Glare control (UGR) is critical. A good LED ceiling panel for offices should meet UGR <19. Microprismatic optics or high-quality diffusers spread light smoothly and reduce direct brightness, minimizing eye strain during prolonged computer work.
LED chips are cooled via the aluminum frame acting as a passive heat sink. A low-quality LED ceiling panel lacking sufficient heat dissipation may lose brightness after just a few thousand hours. Professional LED ceiling panels can achieve lifespans of L80 at 50,000 hours, meaning they maintain at least 80% of initial output.
A special option is the RGB LED panel, allowing color-changing light. It’s ideal for receptions, presentation rooms, or lounge areas. However, for main task lighting, a stable white spectrum focusing on evenness and visual comfort is recommended.
Practical example: 30 m² office with 2.8 m ceiling height
For a 30 m² office with a 2.8 m ceiling, four 120x30 LED panels with 4000 lm output each are recommended. Panels are installed in two rows spaced roughly 1.5–2 m apart and offset about 0.8 m from walls. This layout achieves a uniform illumination level around 400 lux without harsh contrasts.
A frequent mistake is choosing excessively powerful panels without dimming options. Too intense lighting raises glare risk and visual discomfort. Using dimmable LED ceiling panels allows adjusting lighting scenes to the time of day or activity.
For electrical design, we suggest splitting panels into at least two separate circuits and preparing wiring for DALI or 1–10 V control. This creates a flexible system ready for future layout changes.
Design, proportions, and architectural integration
LED ceiling panels have a sleek, minimal look. In modern interiors, they act as integrated light surfaces without distracting details. The 120x30 LED panel format suits linear spaces such as corridors, open offices, or above workstations.
Surface-mounted LED ceiling panels are ideal where there is no suspended ceiling. Their slim profile maintains clean interior lines. The RGB LED panel can complement main lighting with accent effects but should be used thoughtfully, not randomly.
Control, serviceability, and long-term value
Dimming enhances energy efficiency and user comfort. Modern LED ceiling panels can feature dimmable drivers or smart controls. Dividing lighting into multiple zones optimizes power usage based on occupancy.
For lasting value, the ability to replace the power supply without removing the whole fixture is important. Quality LED ceiling panels maintain stable output, low flicker, and consistent color rendering throughout their lifespan. Properly designed systems ensure predictable lighting conditions and technical reliability for years.
